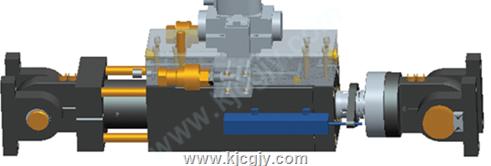

伺服油缸技术参数  General servo cylinder technical parameters

◆工作压力：14-31.5MPa Working pressure: 14-31.5MPa

◆缸径：40-500mm Cylinder diameter: 40-500mm

◆杆径：28-400mm Rod diameter: 28-400mm

◆行程：25-7600mm Stroke: 25-7600mm

◆分辨率：最小2μm Resolution: Minimum 2 m

◆最大线性误差：Maximum linear  deviation

±50μm（至500mm额定检测长度）  ±50μm (to 500mm rated  measuring length)

±0.01FS%（500至5500mm额定检测长度）（500 to 5500mm rated  measuring length）

±0.02FS%（大于5500mm额定检测长度）（larger than 5500mm rated  measuring length

◆滞后：≤5μm Lagging time  ≤5μm

◆工作温度：-40-+85℃  Working temperature: -40-+85℃

◆活塞速度：≤4m/s Piston speed:  ≤4m/s

◆工作介质：矿物油Working medium: Mineral oil

◆安装位置：根据客户需求确定安装位置Installation place: The position of customer’s demand

性能特点Performance features

◆较小的启动压力Smaller starting pressure

◆工作无爬行Without work creeping

◆高加工精度  High machining accuracy

◆极小的导向间隙Minimal guiding clearance
